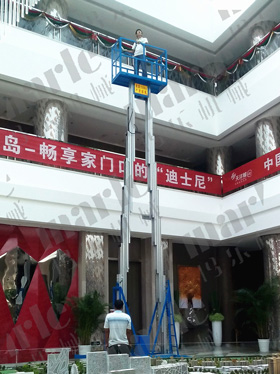

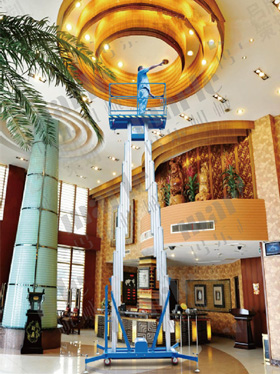

Aluminum Aerial Lift

Description

Parameter

Consultation

Product Features:
(1) aluminum lifting platform suitable for: Single or two people aerial working.
(2) Mast structure is made of high strength extruding aluminum alloy, safe and light weight.
(3) Using self-developed integral built-in slider between the masts, minimize the dynamic gap between the masts, and making lifting and lowering with more smooth, reliable, far better than ordinary independent guide wheel support structure.
(4) Lifting chains use double-stranded structure, which are industrial plate chains, with great capacity and high safety factor.
(5) Fence structure as a whole is of collection type, the operation of which is extremely simple and convenient.
(6) Integral hydraulic power unit, compact structure, reliable performance. Setting with emergency lowering device under power-off state to guarantee the safety for emergency.
(7) Device control voltage is DC 24V, effectively guarantee the personal safety.
(8) Leakage protection switch, emergency stop switches, limit switches, etc., buttons, boxes are waterproof design.

Standard configuration:
(1) Maximum height Specifications: Optional 4m-25m.
(2)Power supply: single-phase AC power (AC220V/50HZ), other forms are optional.
(3) Move: Manual traction.

Optional configuration:
(1) DC battery-powered.
(2)AC and DC powered.
(3) Self-propelled device is available.
(4) Can be installed on the pickup, light truck and other auto compartment (vehicle-mounted), customers need to bring their own vehicles and provide car data.
(5) The trailer chassis is available, suitable for the large distance drag occasions.
(5) Movable platform, max extended length is 500mm.
(7) Insulated platform is also available. (Used in power distribution house for example)
(8)Electrical explosion-proof lifts, used in oil and natural gas explosion-proof requirements occasions.

Single Mast Aluminum Lift

Model	Max Platform Height (m)	Max Woking Height (m)	Capacity (kg)	Platform Size （m）	LWH （m）	Motor Power （kw）	Total Weight （kg)	Power Source (v/hz)
GTWY4-100	4	5.7	125	0.6*0.55	1.280.761.62	1.5	245	AC220/50
GTWY6-100	6	7.7	125	0.6*0.55	1.280.761.98	1.5	275	AC220/50
GTWY8-100	8	9.7	125	0.6*0.55	1.280.761.98	1.5	295	AC220/50
GTWY9-100	9	10.7	125	0.6*0.55	1.350.821.98	1.5	310	AC220/50

Two Masts Aluminum Lift

Model	Max Platform Height (m)	Max Working Height(m)	Capacity (kg)	Platform Size （m）	Dimensions （m）	Motor （kw）	Weight （kg)	Power Source (v/hz)
GTWY6-200S	6	7.7	200	1.17*0.67	1.340.851.98	1.1	405	AC220/50
GTWY8-200S	8	9.7	200	1.17*0.67	1.340.851.98	1.1	465	AC220/50
GTWY9-200S	9	10.7	200	1.37*0.67	1.550.951.98	1.5	475	AC220/50
GTWY10-200S	10	11.7	200	1.37*0.67	1.550.951.98	1.5	585	AC220/50
GTWY12-200SA	12	13.7	200	1.49*0.67	1.671.001.98	1.5	640	AC220/50
GTWY12-200SB	12	13.7	200	1.27*0.67	1.550.952.25	1.5	640	AC220/50

More Masts Aluminum Lift

Series	Model	Max Platform Height (m)	Max Working Height (m)	Capacity (kg)	Platform Size （m）	Dimensions （m）	Motor （kw）	Weight （kg)	Power Source (v/hz)
Three Masts	GTWY10-300S	10	11.7	200	1.52*0.92	1.921.172.05	2.2	865	AC220/50
	GTWY12-300SA	12	13.7	200	1.52*0.92	1.801.172.30	2.2	960	AC220/50
	GTWY12-300SB	12	13.7	200	1.64*0.92	1.801.172.05	2.2	960	AC220/50
	GTWY14-300SA	14	15.7	200	1.64*0.92	1.921.172.30	2.2	1020	AC220/50
	GTWY14-300SB	14	15.7	200	1.52*0.92	1.801.172.55	2.2	1020	AC220/50
Four Masts	GTWY10-400S	10	11.7	300	1.40*0.80	1.701.102.05	2.2	950	AC220/50
	GTWY12-400S	12	13.7	300	1.40*0.80	1.701.102.32	2.2	980	AC220/50
	GTWY14-400SA	14	15.7	300	1.40*0.80	1.801.102.52	2.2	1000	AC220/50
	GTWY14-400SB	14	15.7	300	1.40*0.80	1.901.102.32	2.2	1000	AC220/50
	GTWY15-400S	15	16.7	200	1.40*0.80	2.001.202.68	2.2	1100	AC220/50
Six Masts	GTWY16-4200S	16	17.7	160	1.45*0.90	2.251.302.18	2.2/1.1	1200	AC220/50
	GTWY18-4200S	18	19.7	160	1.45*0.90	2.251.302.42	2.2/1.1	1400	AC220/50
	GTWY19-4200S	19	20.7	160	1.55*0.90	2.501.402.52	2.2/1.1	1500	AC220/50
	GTWY20-4200S	20	21.7	160	1.55*0.90	2.501.402.62	2.2/1.1	1780	AC220/50
	GTWY22-4200S	22	23.7	160	1.55*0.90	3.001.602.82	2.2/1.1	1880	AC220/50
	GTWY23-4200S	23	24.7	160	1.55*0.90	3.001.602.92	2.2/1.1	2000	AC220/50
	GTWY25-4200S	25	26.7	160	1.55*0.90	3.201.603.15	2.2/1.1	2200	AC220/50
