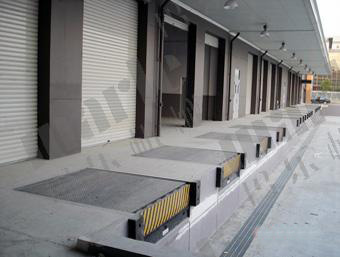

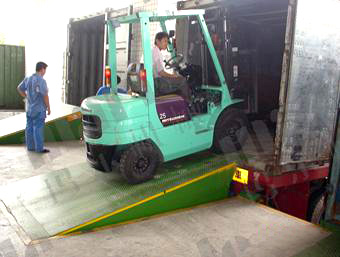

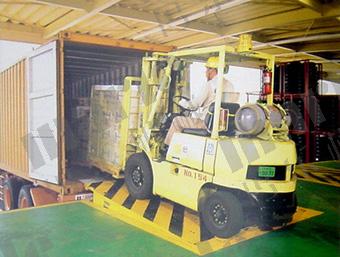

Stationary Dock Leveler is special auxiliary equipment installed on platform of warehouse for truck’s loading and unloading goods. The front flap of dock leveler can be adjusted in height, so that the dock leveler can closely overlap with the carriage of truck all the working time. Forklift or other handling vehicles could pass dock leveler smoothly and complete loading and unloading operations quickly and efficiently, it is the essential and special auxiliary equipment for modern warehousing and logistics industry.

(1)  w design of Germany concept, more concern about human operation.
(2)  Italy imported power stations, more stable performance.
(3)  Imported high-quality seals are used to ensure excellent sealing performance of hydraulic system.
(4)  Platform is made of checkered steel plate, with good slip resistance.
(5)  Safety protection boards are set on both sides of equipment to guarantee safe using.
(6)  Product is equipped with safety crash cushion to guarantee safe parking.
(7)  Set with security supporting bar, to ensure the safety of maintenance.
(8)  Compact structure, lightweight appearance, convenient operation and easy for maintenance.
(9)  Product can be provided according to actual requirements to meet personalized demands.

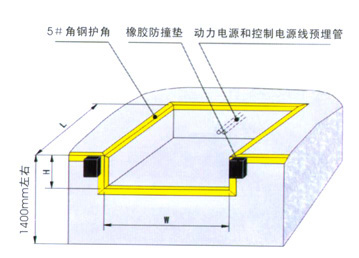

基坑总图

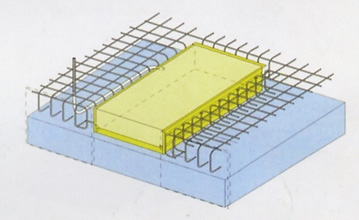

基坑结构图

Description of civil engineering on foundation pit ：

（1） The bottom of foundation pit should be level, the wall must be perpendicular to the bottom, and the diagonals must be equal.
（2）The tolerance of pit sizes should be ≤ 10mm.
（3）The pit wall and bottom’s thickness of concrete placement should be ≥200mm.
（4）Pre-plant two pipes, the inner diameters are Φ50, and they would be introduced to foundation pit from control buttons and power supply respectively.
（5）Both sides of the front of foundation pit must be solid and smooth, which would be used for installing rubber impact-proof blocks.
