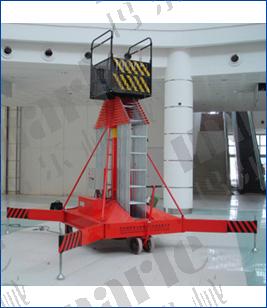

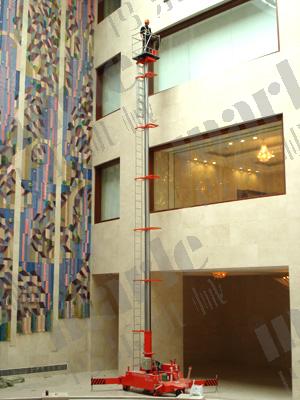

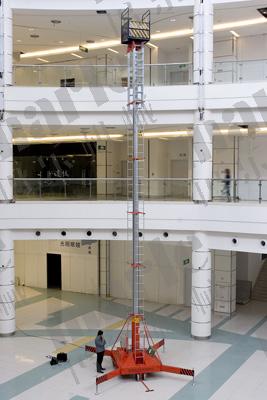

Telescopic Cylindrical Lift is a kind of aerial working equipments that achieve rise and fall according to multi-level nested functions of high-precision hydraulic cylinders. Because of the stability of the tower structure, it can achieve a higher than normal operating aerial platform height, maximum platform height up to 40 meters. Widely used in hotel lobbies, exhibition centers, railway stations, sea or air port, big squares and other aerial working occasions.
(1) Tower-like supporting cradle, with excellent stability.
(2) Equipped with level adjusting instrument, to ensure that product be at level state when used.
(3) The maximum height can reach 40 meters, meeting the requirement of super height.
(4) Specially designed series can easily pass the door, convenient to be placed and maintained.
(5) The machine can be controlled on the platform or ground, more convenient and flexible to use.
(6) Remote control box could be set optionally.
(7) This product is especially suitable for occasions where working height is higher than 20 meters.
One Ladder Anti-Turn GTTY-A Series |
Model |
Max Platform
Height (m) |
Capacity
(kg) |
Wind-Resistant
(level) |
Platform
Size(m) |
Power Source
(v/hz) |
Motor Power
(kw) |
Total Weight
(kg) |
L*W*H
(m) |
GTTY-6A |
6 |
200 |
5 |
0.75*0.75 |
AC220/50 |
1.1 |
480 |
1.02*0.92*1.80 |
GTTY-8A |
8 |
200 |
5 |
0.8*0.8 |
AC220/50 |
1.1 |
580 |
1.16*0.92*2.05 |
GTTY-10A |
10 |
200 |
5 |
0.8*0.8 |
AC220/50 |
1.1 |
650 |
1.16*1.00*2.17 |
GTTY-12A |
12 |
200 |
5 |
0.8*0.8 |
AC220/50 |
1.1 |
900 |
1.40*1.23*2.23 |
GTTY-14A |
14 |
200 |
5 |
0.8*0.8 |
AC220/50 |
1.1 |
1075 |
1.40*1.23*2.30 |
GTTY-15A |
15 |
200 |
5 |
0.8*0.8 |
AC220/50 |
1.1 |
1200 |
1.40*1.23*2.40 |
Two Ladders Anti-Turn GTTY-B Series |
Model |
Max Platform
Height (m) |
Capacity
(kg) |
Wind-Resistant
(level) |
Platform
Size(m) |
Power Source
(v/hz) |
Motor Power
(kw) |
Total Weight
(kg) |
L*W*H
(m) |
GTTY-16B |
16 |
200 |
5 |
0.8*0.8 |
AC220/50 |
1.5 |
1350 |
1.68*1.39*2.36 |
GTTY-18B |
18 |
200 |
5 |
0.8*0.8 |
AC220/50 |
1.5 |
1430 |
1.78*1.47*2.60 |
GTTY-20B |
20 |
150 |
5 |
0.8*0.8 |
AC220/50 |
1.1×2 |
1650 |
1.78*1.56*2.65 |
GTTY-21B |
21 |
150 |
5 |
0.8*0.8 |
AC220/50 |
1.1×2 |
1700 |
1.78*1.56*2.70 |
GTTY-22B |
22 |
150 |
5 |
0.8*0.8 |
AC220/50 |
1.1×2 |
1820 |
1.97*1.65*2.80 |
GTTY-23B |
23 |
150 |
5 |
0.8*0.8 |
AC220/50 |
1.1×2 |
2000 |
1.97*2.65*2.90 |
GTTY-24B |
24 |
150 |
5 |
0.8*0.8 |
AC220/50 |
1.1×2 |
2200 |
1.97*1.65*3.00 |
GTTY-25B |
25 |
150 |
5 |
0.8*0.8 |
AC220/50 |
1.1×2 |
2350 |
2.05*1.75*3.05 |
GTTY-26B |
26 |
150 |
4 |
0.8*0.8 |
AC220/50 |
1.1×2 |
2450 |
2.05*1.75*3.20 |
GTTY-28B |
28 |
120 |
4 |
0.8*0.8 |
AC220/50 |
1.1×2 |
2500 |
2.20*1.80*3.20 |
GTTY-30B |
30 |
120 |
4 |
0.8*0.8 |
AC220/50 |
1.1×2 |
2800 |
2.25*1.90*3.25 |
GTTY-32B |
32 |
120 |
4 |
0.8*0.8 |
AC220/50 |
1.1×2 |
3200 |
2.50*1.90*3.35 |
GTTY-35B |
35 |
120 |
4 |
0.8*0.8 |
AC220/50 |
1.1×2 |
3600 |
2.60*1.90*3.70 |
GTTY-38B |
38 |
120 |
4 |
0.8*0.8 |
AC220/50 |
1.1×2 |
4000 |
2.80*2.00*3.90 |

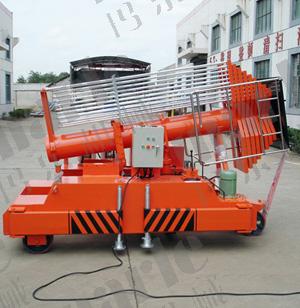

Tiltable GTTY- Series |
Model |
Max Platform
Height (m) |
Capacity
(kg) |
Wind-Resistant
(level) |
Platform
Size(m) |
Power Source
(v/hz) |
Motor Power
(kw) |
Total Weight
(kg) |
L*W*H
(m) |
GTTY-20 |
20 |
150 |
5 |
0.8*0.8 |
AC220/50 |
1.5 |
2350 |
2.80*1.45*2.20 |
GTTY-22 |
22 |
150 |
5 |
0.8*0.8 |
AC220/50 |
1.5 |
2500 |
2.90*1.45*2.25 |
GTTY-24 |
24 |
150 |
4 |
0.8*0.8 |
AC220/50 |
1.5 |
2650 |
3.00*1.50*2.25 |
GTTY-26 |
26 |
150 |
4 |
0.8*0.8 |
AC220/50 |
1.1×2 |
2800 |
310*1.50*2.30 |
GTTY-28 |
28 |
120 |
4 |
0.8*0.8 |
AC220/50 |
1.1×2 |
3000 |
3.20*1.60*2.35 |
GTTY-30 |
30 |
120 |
4 |
0.8*0.8 |
AC220/50 |
1.1×2 |
3200 |
3.20*1.60*2.35 |
GTTY-32 |
32 |
120 |
4 |
0.8*0.8 |
AC220/50 |
1.1×2 |
3600 |
3.40*1.70*2.35 |
GTTY-35 |
35 |
120 |
4 |
0.8*0.8 |
AC220/50 |
1.1×2 |
4000 |
3.60*1.70*2.35 |
GTTY-38 |
38 |
120 |
4 |
0.8*0.8 |
AC220/50 |
1.1×2 |
4350 |
3.80*1.70*2.35 |
Thanks for your visit Marle website! You can get our detailed service plan from this part. If you have any questions or suggestions when you are purchasing lifts, you can always contact us through the following ways. Marle professional engineers will provide a full range of consulting attentive service and solve problems in the first time to ensure that each customer can purchase satisfied products.
For advisory services: please call 0512-65801131;
For technical support: please call 0512-65801132;
If you need to send procurement requirements: Please send a fax 0512-65801135;
You can also send mail for more product information: sales@chinamarle.com
If the products can not be used as a result of product quality problems, we promise that:
(1) Return the product within ten days after receiving;
(2) Replace the product within one month after receiving;
(3) One-year warranty.
