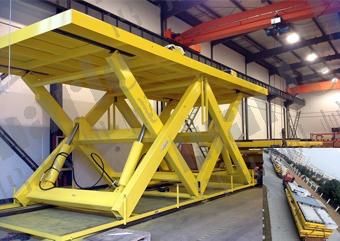

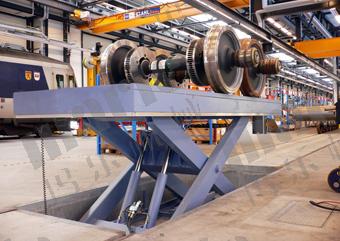

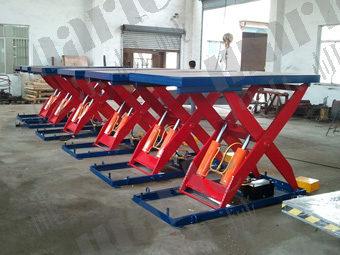

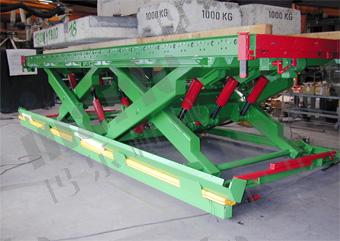

Stationary Scissor Lift is a kind of cargo lifting equipments with excellent security and stability, compact structure and convenient operation. Widely used in the operating occasions of cargo delivery, parts assembly, and materials on/off production lines with different height etc. it can be designed with different platform sizes, drive type, control and other auxiliary accessories to meet diverse needs of the full range of use , according to customer requirements of different environments and operating characteristics .
(1)New design scissor structure, with more stability and reliability, and superior performance.
(2)Big capacity, compact structure, good appearance, much flexible and convenient for using and maintenance.
(3)High precision cylinders, high quality seals ensure that no oil leakage, smooth movements.
(4)Overload protection on the hydraulic system, more safety.
(5)Set with emergency lowering device under power-off state to guarantee the safety for emergency.
(6)Reserved wire port enabling the PLC system control, with a wider compatibility.
(7)Wide range of optional accessories could be chosen, meeting all requirements of customers.
(8)Clean and environment-friendly products, be of great benefit to environmental protection.

Item |
Model |
Capacity
(kg) |
Min Height
H1(mm) |
Stroke
H2(mm) |
Max Height
H3 (mm) |
Platform Size
L×W (mm) |
Lifting
Time (s) |
Total Weight
(kg) |
Power Source
(v) |
Single Scissor |
SJG0.3-0.74 |
300 |
120 |
740 |
860 |
1500*1500 |
25 |
400 |
AC-380 |
SJG0.5-0.5 |
500 |
200 |
500 |
700 |
1050*800 |
10 |
420 |
AC-380 |
SJG1-0.8 |
1000 |
250 |
800 |
1050 |
1200*900 |
28 |
450 |
AC-380 |
SJG1-1 |
1000 |
240 |
1000 |
1240 |
1500*1500 |
22 |
650 |
AC-380 |
SJG1.5-1 |
1000 |
210 |
1000 |
1210 |
1600*780 |
24 |
520 |
AC-380 |
SJG2-1 |
2000 |
240 |
1000 |
1240 |
2000*1500 |
40 |
950 |
AC-380 |
SJG2-1.22 |
2000 |
230 |
1220 |
1450 |
1800*780 |
43 |
730 |
AC-380 |
SJG2-1.6 |
2000 |
240 |
1600 |
1840 |
2400*1800 |
30 |
1250 |
AC-380 |
SJG3-1 |
3000 |
340 |
1000 |
1340 |
2500*1200 |
20 |
1250 |
AC-380 |
SJG4-1.2 |
4000 |
400 |
1200 |
1600 |
1900*1280 |
40 |
1220 |
AC-380 |
SJG5-1.4 |
5000 |
475 |
1400 |
1875 |
2500*2500 |
30 |
2300 |
AC-380 |
SJG7-1.2 |
7000 |
862 |
1200 |
2062 |
4000*3200 |
60 |
3500 |
AC-380 |
SJG8-1.6 |
8000 |
480 |
1600 |
2080 |
2600*1400 |
78 |
2300 |
AC-380 |
SJG10-1.5 |
10000 |
580 |
1500 |
2080 |
3000*1500 |
92 |
3800 |
AC-380 |
SJG10-4.8 |
10000 |
1200 |
4800 |
6000 |
9000*7000 |
77 |
18500 |
AC-380 |
SJG16-1.8 |
16000 |
750 |
1800 |
2550 |
3200*2120 |
65 |
4500 |
AC-380 |
SJG20-1.8 |
20000 |
580 |
1800 |
2380 |
3020*1800 |
65 |
4550 |
AC-380 |
SJG30-2 |
30000 |
1430 |
2000 |
3430 |
7000*2220 |
40 |
14300 |
AC-380 |
Double Scissors |
SJG0.5-1 |
500 |
320 |
1000 |
1320 |
1000*700 |
23 |
500 |
AC-380 |
SJG0.5-1.2 |
500 |
300 |
1000 |
1300 |
1000*1000 |
16 |
560 |
AC-380 |
SJG0.9-1 |
900 |
300 |
1000 |
1300 |
1200*700 |
33 |
480 |
AC-380 |
SJG1-2.5 |
1000 |
440 |
2500 |
2940 |
2000*1000 |
40 |
1000 |
AC-380 |
SJG1.5-2.5 |
1500 |
500 |
2500 |
3000 |
1900*1500 |
50 |
1300 |
AC-380 |
SJG2-6.9 |
2000 |
750 |
6900 |
7650 |
5500*2500 |
53 |
5850 |
AC-380 |
SJG3-2.5 |
3000 |
600 |
2500 |
3100 |
3200*2200 |
54 |
2750 |
AC-380 |
SJG3-5 |
3000 |
690 |
5000 |
5690 |
4000*2000 |
70 |
4600 |
AC-380 |
SJG5-1.7 |
5000 |
500 |
1700 |
2200 |
1800*800 |
39 |
1520 |
AC-380 |
SJG8-7 |
8000 |
850 |
7000 |
7850 |
9000*7350 |
96 |
15800 |
AC-380 |
Thanks for your visit Marle website! You can get our detailed service plan from this part. If you have any questions or suggestions when you are purchasing lifts, you can always contact us through the following ways. Marle professional engineers will provide a full range of consulting attentive service and solve problems in the first time to ensure that each customer can purchase satisfied products.
For advisory services: please call 0512-65801131;
For technical support: please call 0512-65801132;
If you need to send procurement requirements: Please send a fax 0512-65801135;
You can also send mail for more product information: sales@chinamarle.com
If the products can not be used as a result of product quality problems, we promise that:
(1) Return the product within ten days after receiving;
(2) Replace the product within one month after receiving;
(3) One-year warranty.
