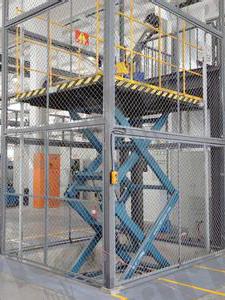

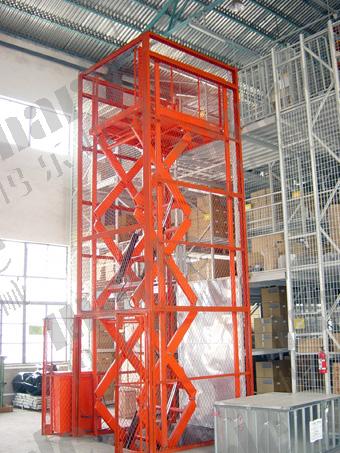

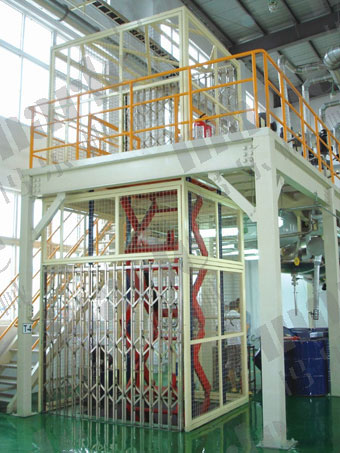

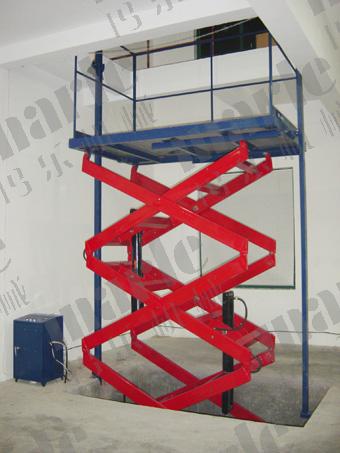

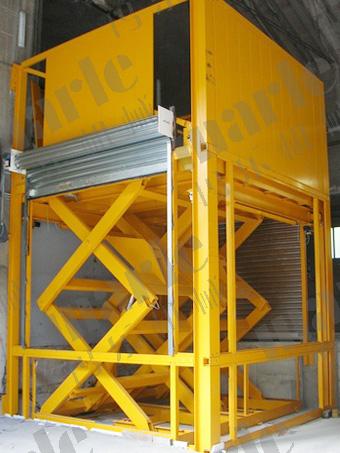

Stationary Cargo Lift is a kind of lifting equipments designed to transfer goods between different floors of a building. In recent years, with the technology of hydraulic lifting platform continues to mature and improve, such lifting platforms are gradually replacing elevators in low-rise buildings relies on its excellent stability and good economy as ideal cargo lifting equipments. Widely used in multi-storey factories, warehouses, solid garages and other multi-storey buildings for the delivery of goods.
(1)Engineers do on-site measurements in the first time, providing professional solutions for customers.
(2)Using high-strength manganese steel Q345B square tube, with solid structure, more safety and reliability.
(3)High precision cylinders, high quality seals ensure that no oil leakage, smooth movements.
(4)Electrical interlock protection, machine can lift and down only when all floors doors closed in place.
(5)Setting with explosion-proof valve with anti-fall protection.
(6)Overload protection on the hydraulic system, more safety.
(7)Set with emergency lowering device under power-off state to guarantee the safety for emergency.
(8)Hydraulic hoses with double steel wire reinforcing rubber tube, with anti-fracture function
(9)Multi-point controls set between different floors, easy for operating.
(10)Various optional configurations are available, meeting all requirements.

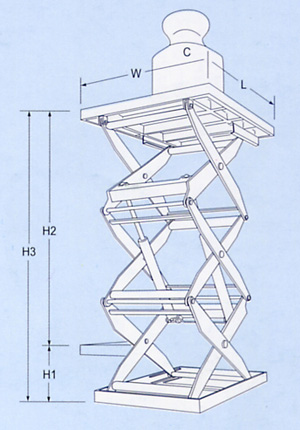

Model |
Capacity
(kg) |
Min Height
H1(mm) |
Stroke
H2 (mm) |
Max Height
H3 (mm) |
Platform Size
L×W (mm) |
Lifting Time (s) |
Power Source (v) |
SJG0.2-5.8 |
200 |
1003 |
5800 |
6803 |
1250*950 |
52 |
AC-380 |
SJG0.5-3 |
500 |
635 |
3000 |
3635 |
2000*1000 |
45 |
AC-380 |
SJG0.5-5.1 |
500 |
832 |
5100 |
6032 |
1800*1600 |
48 |
AC-380 |
SJG0.5-10 |
500 |
1284 |
10000 |
11284 |
2500*1500 |
100 |
AC-380 |
SJG1-4 |
1000 |
610 |
4000 |
4610 |
2000*1500 |
70 |
AC-380 |
SJG1-4.5 |
1000 |
992 |
4500 |
5492 |
1800*1600 |
52 |
AC-380 |
SJG1-8 |
1000 |
1630 |
8000 |
9630 |
2200*1500 |
85 |
AC-380 |
SJG1-9.2 |
1000 |
1375 |
9200 |
10575 |
2700*1500 |
96 |
AC-380 |
SJG1-10.55 |
1000 |
1372 |
10550 |
11922 |
2400*1700 |
110 |
AC-380 |
SJG1-12 |
1000 |
1307 |
12000 |
13307 |
3300*2500 |
175 |
AC-380 |
SJG1.5-4.5 |
1500 |
1007 |
4500 |
5507 |
2000*1800 |
50 |
AC-380 |
SJG1.5-5.5 |
1500 |
1007 |
5500 |
6507 |
2200*1600 |
66 |
AC-380 |
SJG2-4.5 |
2000 |
1107 |
4500 |
5607 |
2000*1500 |
60 |
AC-380 |
SJG2-4.5 |
2000 |
1107 |
4500 |
5537 |
2350*1900 |
60 |
AC-380 |
SJG2-5.55 |
2000 |
1107 |
5550 |
6657 |
2600*2300 |
75 |
AC-380 |
SJG2-5 |
2000 |
1107 |
5000 |
6107 |
2000*2000 |
66 |
AC-380 |
SJG2-6 |
2000 |
1107 |
6000 |
7107 |
2300*1500 |
78 |
AC-380 |
SJG2-6.6 |
2000 |
1107 |
6600 |
7107 |
2800-2500 |
85 |
AC-380 |
SJG2-7 |
2000 |
1107 |
7000 |
8107 |
2600*1500 |
90 |
AC-380 |
SJG2-8 |
2000 |
1490 |
8000 |
9490 |
2500*2000 |
106 |
AC-380 |
SJG2-8.75 |
2000 |
1230 |
8750 |
9980 |
3200*1500 |
110 |
AC-380 |
SJG2-9.9 |
2000 |
1460 |
9900 |
11360 |
3000*2000 |
164 |
AC-380 |
SJG2.5-9.9 |
2500 |
1680 |
9900 |
11580 |
2600*2000 |
163 |
AC-380 |
SJG3-2.75 |
3000 |
798 |
2750 |
3548 |
1550*1400 |
55 |
AC-380 |
SJG3-5 |
3000 |
800 |
5000 |
5800 |
2000*1500 |
78 |
AC-380 |
SJG3-9.6 |
3000 |
1220 |
9600 |
10820 |
6000*2500 |
108 |
AC-380 |
SJG10-6 |
10000 |
1336 |
6000 |
7336 |
3200*1500 |
110 |
AC-380 |
SJG20-2.5 |
20000 |
1080 |
2500 |
3580 |
6500*1350 |
105 |
AC-380 |
Thanks for your visit Marle website! You can get our detailed service plan from this part. If you have any questions or suggestions when you are purchasing lifts, you can always contact us through the following ways. Marle professional engineers will provide a full range of consulting attentive service and solve problems in the first time to ensure that each customer can purchase satisfied products.
For advisory services: please call 0512-65801131;
For technical support: please call 0512-65801132;
If you need to send procurement requirements: Please send a fax 0512-65801135;
You can also send mail for more product information: sales@chinamarle.com
If the products can not be used as a result of product quality problems, we promise that:
(1) Return the product within ten days after receiving;
(2) Replace the product within one month after receiving;
(3) One-year warranty.
