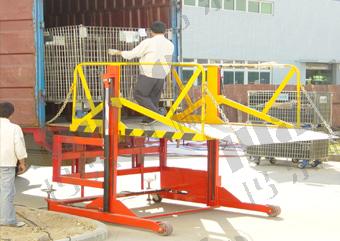

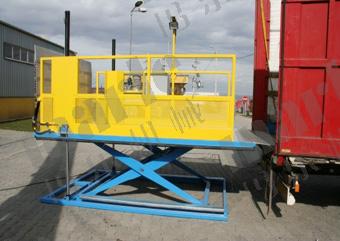

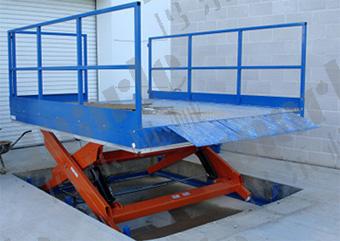

Stationary Handing Lift are equipments that used for cargo handling as the goods at different heights. As such lifting platform is specifically designed with activities lips to meet fast, efficient loading and unloading needs, so it has great advantages in terms of cargo handling compared to general lifting platform, widely used in storage and cargo handling sector, postal services, logistics, aviation logistics and other industries which require high efficiency on cargo handling.

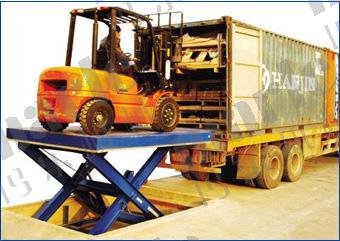

(1)No need to build ramps, forklifts or pallet trucks can directly drive from the ground onto the platform.
(2)After the operation, the stowed height is on the same level as the ground, not occupying any space.
(3)Professional designed lips can lap on the trucks smoothly, stable and reliable
(4)Integrated combination of pump packs, more convenient to use and maintenance
(5)Foot-button control can be set to meet the requirements of human.
(6)High-quality hydraulic components, high-quality steel, can meet the requirements of frequent lifting.
(7)Overload protection on the hydraulic system, more safety.
(8)Set with emergency lowering device under power-off state to guarantee the safety for emergency.
(9)Compact structure, simple appearance, is very flexible and convenient for using and maintenance.
(10)Clean and environment-friendly products, be of great benefit to environmental protection.

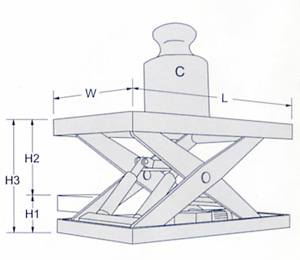

Model |
Capacity
(kg) |
Min Height H1
(mm) |
Stroke
H2 (mm) |
Max Height
H3 (mm) |
Platform Size
L×W (mm) |
Lifting Time
(s) |
Total Weight
(kg) |
Power Source
(v) |
SJG0.3-0.6 |
300 |
200 |
600 |
800 |
1200*900 |
8 |
360 |
AC-380 |
SJG0.5-0.5 |
500 |
200 |
500 |
700 |
1050*800 |
10 |
420 |
AC-380 |
SJG0.5-1.1 |
500 |
230 |
1100 |
1330 |
1680*1000 |
5 |
480 |
AC-380 |
SJG0.8-0.55 |
800 |
200 |
550 |
750 |
1440*550 |
13 |
360 |
AC-380 |
SJG1-0.7 |
1000 |
300 |
700 |
1000 |
1200*1100 |
11 |
430 |
AC-380 |
SJG1-0.8 |
1000 |
250 |
1000 |
1250 |
1200*900 |
28 |
450 |
AC-380 |
SJG1-1 |
1000 |
240 |
1000 |
1240 |
1500*1500 |
22 |
650 |
AC-380 |
SJG1-1.2 |
1000 |
240 |
1200 |
1440 |
1700*1400 |
30 |
800 |
AC-380 |
SJG1.3-0.8 |
1300 |
300 |
800 |
1100 |
1500*1350 |
19 |
650 |
AC-380 |
SJG1.5-1.25 |
1500 |
320 |
1250 |
1570 |
1700*1600 |
32 |
780 |
AC-380 |
SJG2-0.46 |
2000 |
240 |
460 |
700 |
930*890 |
18 |
480 |
AC-380 |
SJG2-1 |
2000 |
240 |
1000 |
1240 |
2000*1500 |
40 |
950 |
AC-380 |
SJG2-1.22 |
2000 |
230 |
1220 |
1450 |
1800*780 |
43 |
730 |
AC-380 |
SJG2-1.6 |
2000 |
240 |
1600 |
1840 |
2400*1800 |
30 |
1250 |
AC-380 |
SJG3-0.35 |
3000 |
300 |
350 |
650 |
1680*1030 |
22 |
800 |
AC-380 |
SJG3-0.9 |
3000 |
300 |
900 |
1200 |
2100*1300 |
45 |
720 |
AC-380 |
SJG3-1 |
3000 |
340 |
1000 |
1340 |
2500*1200 |
20 |
1250 |
AC-380 |
SJG3.5-1.3 |
3500 |
500 |
1300 |
1800 |
2500*1300 |
36 |
1550 |
AC-380 |
SJG4-0.5 |
4000 |
900 |
500 |
1400 |
3800*2300 |
29 |
2300 |
AC-380 |
SJG4-0.8 |
4000 |
235 |
800 |
1035 |
1600*800 |
25 |
1060 |
AC-380 |
SJG4-1 |
4000 |
340 |
1000 |
1340 |
1700*500 |
40 |
1400 |
AC-380 |
SJG5-1.1 |
5000 |
380 |
1100 |
1480 |
2200*1350 |
40 |
1620 |
AC-380 |
SJG5-1.4 |
5000 |
475 |
1400 |
1875 |
2500*2500 |
30 |
2300 |
AC-380 |
SJG7-1.2 |
7000 |
862 |
1200 |
2062 |
4000*3200 |
60 |
3500 |
AC-380 |
SJG8-1.6 |
8000 |
480 |
1600 |
2080 |
2600*1400 |
78 |
2300 |
AC-380 |
SJG10-1.5 |
10000 |
580 |
1500 |
2080 |
3000*1500 |
92 |
3500 |
AC-380 |
SJG12-1.6 |
1200 |
550 |
1600 |
2150 |
3000*2100 |
46 |
3700 |
AC-380 |
Thanks for your visit Marle website! You can get our detailed service plan from this part. If you have any questions or suggestions when you are purchasing lifts, you can always contact us through the following ways. Marle professional engineers will provide a full range of consulting attentive service and solve problems in the first time to ensure that each customer can purchase satisfied products.
For advisory services: please call 0512-65801131;
For technical support: please call 0512-65801132;
If you need to send procurement requirements: Please send a fax 0512-65801135;
You can also send mail for more product information: sales@chinamarle.com
If the products can not be used as a result of product quality problems, we promise that:
(1) Return the product within ten days after receiving;
(2) Replace the product within one month after receiving;
(3) One-year warranty.
